Pulse 2

Sound generation

• 3 analog oscillators + 1 noise generator
• Modulations:
  • PWM (pulse width modulation)
  • Hard sync
  • Ring modulation (oscillator 3)
  • Filter FM (oscillator 3)
• XOR mode for digital/complex textures

Filter

• Analog cascade filter
• Types:
  • Low pass 24 dB / 12 dB
  • High pass 12 dB
  • 12 dB bandpass

Polyphony / modes

• Mainly monophonic
• Paraphonic modes for up to 8 voices (chords possible)
• Unison mode available

Modulation & control

• Modulation matrix (8 slots)
• Integrated arpeggiator
• Approximately 500 presets

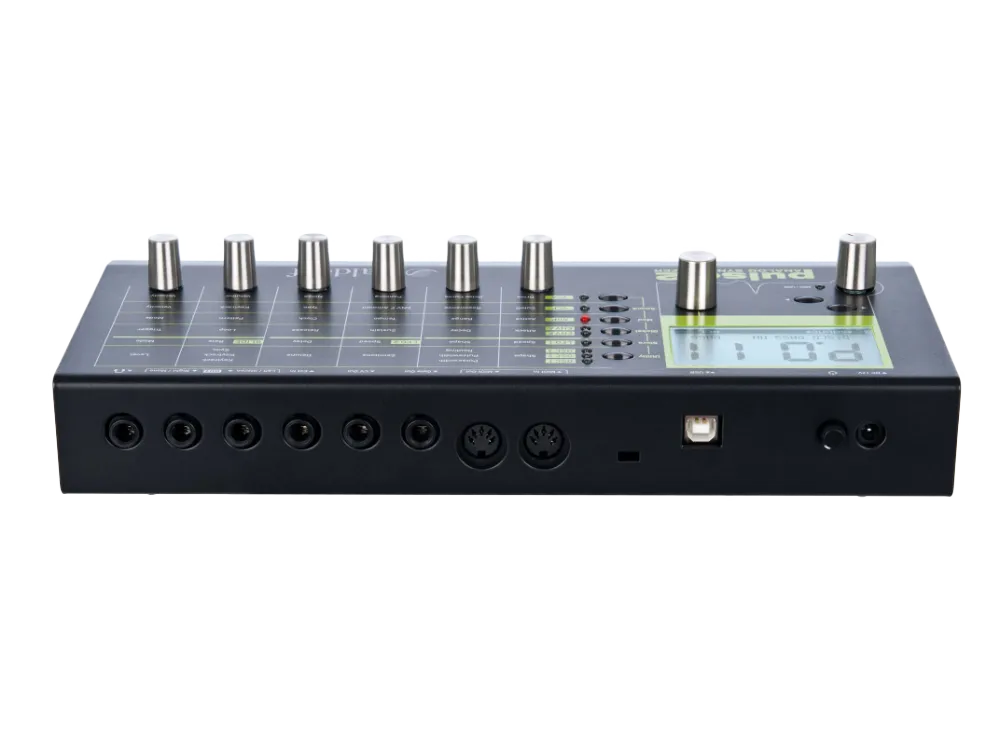

Connectivity

• MIDI In/Out (5-pin DIN) + USB
• Audio outputs:
  • 2 x 6.35mm jack (L/R)
  • headphone output
• External audio input
• CV/Gate outputs

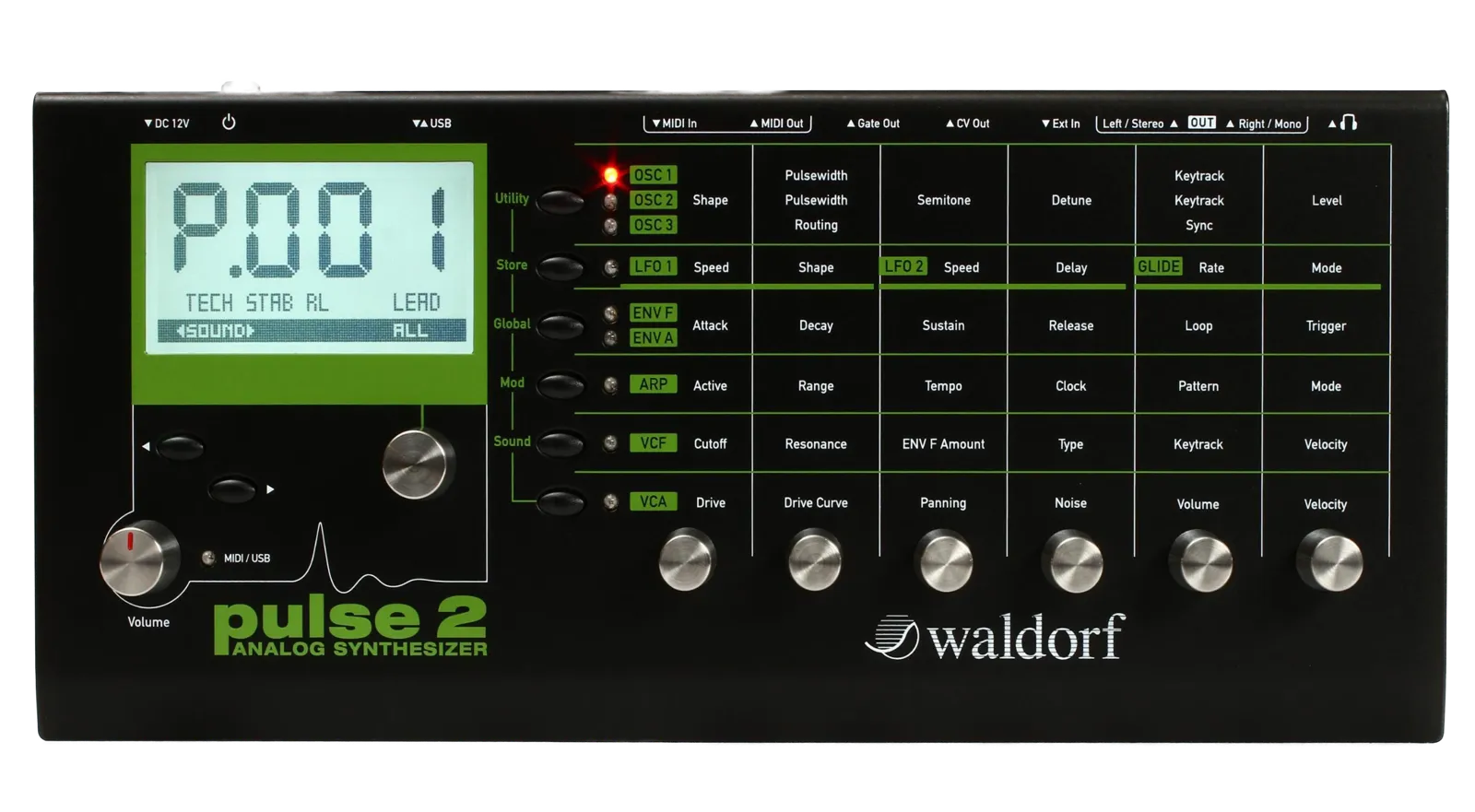

Interface

• Backlit LCD screen (128×64)
• 8 encoders (potentiometers)
• Menu navigation

Dimensions & power supply

• Dimensions: approx. 304 × 132 × 54 mm
• Weight: ≈ 1.5 kg
• Power supply: 12V DC

‍
