Tech Specs
Digital Audio
- Converters: Cirrus Logic, 24-bit PCM, 48 kHz
- Digital signal processing: 32-bit, floating point, double precision
- Dynamic range (A-weighted, unity gain) :some text
- ADC: 113 dB
- DAC: 113 dB
- CD input to analog output: 110 dB
- CD input to USB output: 113 dB
- USB input to analog output: 113 dB
Pads
- Number: 16 multi-colored backlit pads (8 per deck, 9 modes each)
Wheel Displays
- Number and resolution: 2 320 x 240 LCD color screens
Pad & FX Displays
- Number and resolution: 9 128 x 32 OLED monochrome screens
Faders
- Crossfader: 1 MAG FOUR tension adjustable with adjustable contour
- Channel faders: 4 standards

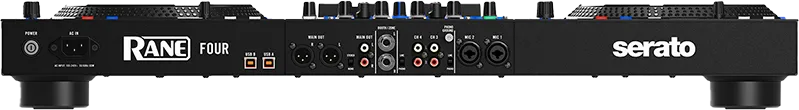

Connections (Connections)
- Outputs:some text
- 2 XLR outputs (Main)
- 2 1/4” outputs (Booth)
- 1 pair of stereo RCA outputs (Main)
- Microphone Inputs:some text
- 2 combined XLR / TRS 1/4” inputs (Mic 1–2)
- Stereo RCA Inputs :some text
- 2 pairs of RCA inputs (Decks 3-4)
- Headphone outputs :some text
- 1 1/4” (6.35 mm) TRS output
- 1 1/8” (3.5 mm) TRS output
- USB ports: 2 USB Type-B ports
- Power cable: 1 IEC input
