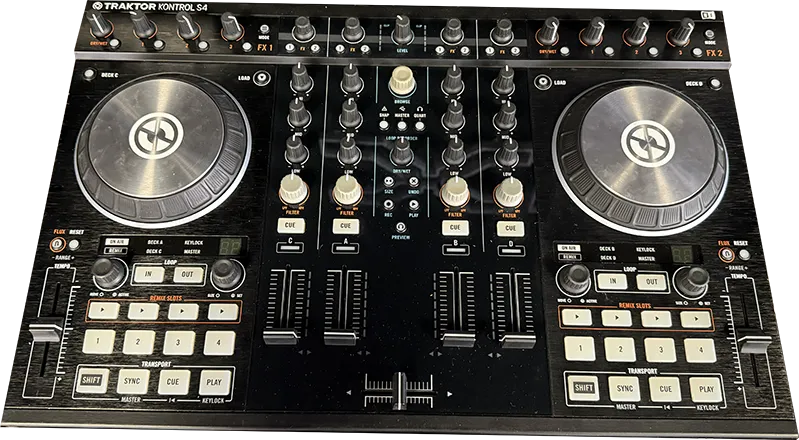

Traktor KONTROL S4 + flight case + decksaver

Audio inputs (A/D)

• Channels: 4 stereo
• Sampling rate / Resolution: 96 kHz / 24 bits
• Converter: Cirrus Logic CS5368

Line inputs

• Dynamic range (A-weighted): 110 dB
• Frequency response: 20 Hz - 20 kHz, +0.1 / -0.05 dB
• THD+N: 0.002%

Mic input

• Dynamic range (A-weighted) at 1 kHz: 104 dB
• Frequency response: 20 Hz - 20 kHz, +0.04 / -2.7 dB

Phono inputs

• Input impedance: 48.5 kΩ
• Dynamic range (A-weighted) at 1 kHz: 78 dB


Audio outputs (D/A)

• Channels: 2 stereo channels
• Sampling rate / Resolution: 96 kHz / 24 bits
• Converter: Cirrus Logic CS4385

Line outputs (XLR and 1/4” cab)

• Dynamic range (A-weighted): 110 dB
• Frequency response: 20 Hz - 20 kHz, +0.4 / -0.2 dB
• THD+N: 0.001%

Line outputs (RCA)

• Dynamic range (A-weighted): 110 dB
• Frequency response: 20 Hz - 20 kHz, +0.6 / -0.2 dB
• THD+N: 0.001%

Headphone output

• Load impedance: 33 Ω
• Dynamic range (A-weighted): 104 dB
• Frequency response: 20 Hz - 20 kHz, +0.4 / -0.3 dB

‍
