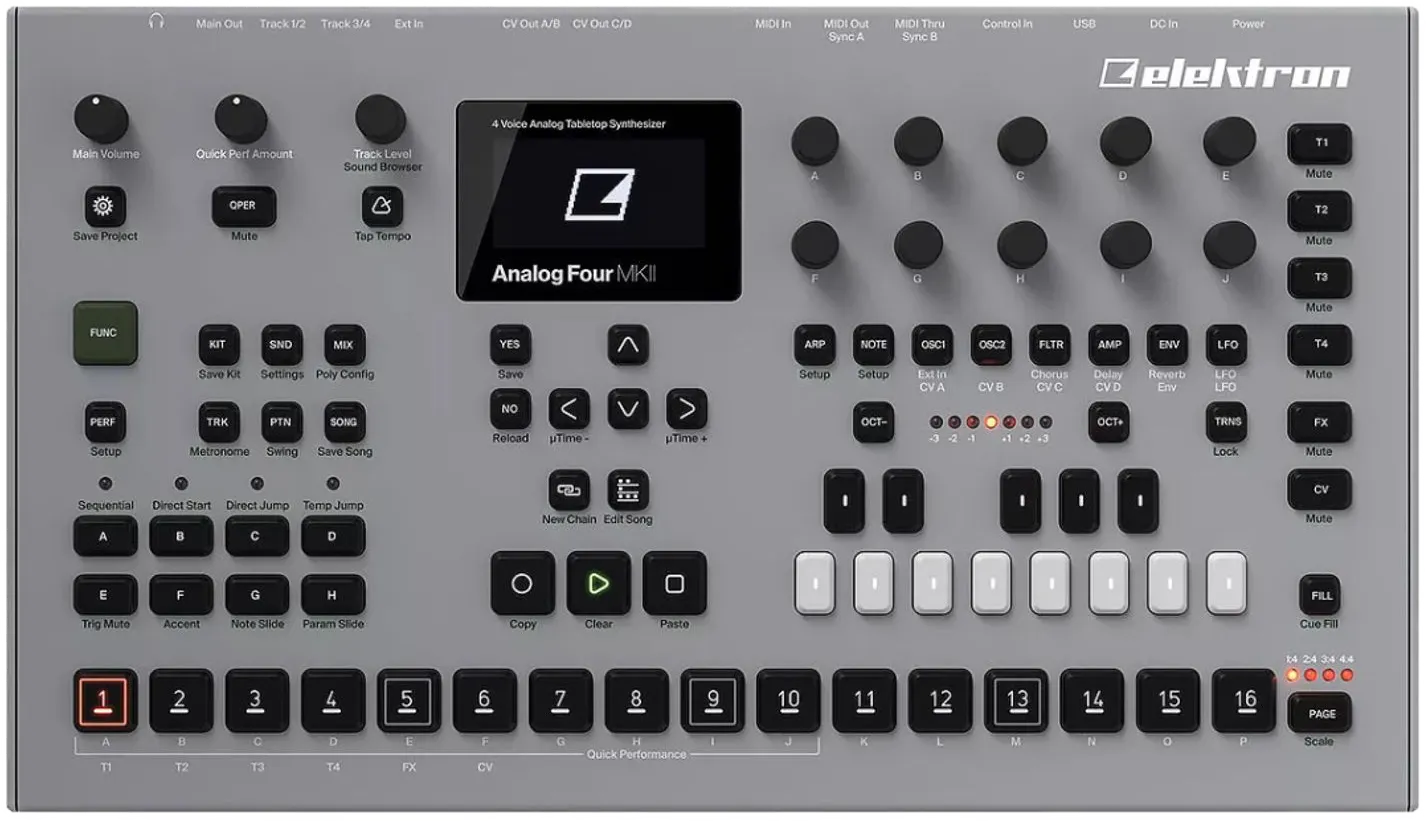

Analog Four mk2

Synthesis engine (by voice)

• 2 × analog oscillators
• 2 × sub-oscillators
• 1 × noise generator
• 2 filters:
  • 4-pole low-pass filter (ladder)
  • 2-pole multimode filter
• Analog overdrive circuit (distortion)
• 2 × assignable LFOs
• 1 amp envelope + 2 assignable envelopes

Sequencer & modulation

• Step sequencer
• Up to 64 steps per pattern
• 4 synth tracks + 1 FX + 1 CV/Gate
• Key functions:
  • Parameter locks (step automation)
  • Micro-timing
  • Swing, slide, accent
  • Trig probability
• 6 integrated arpeggiators

Built-in effects

• Chorus (stereo)
• Delay
• Reverb

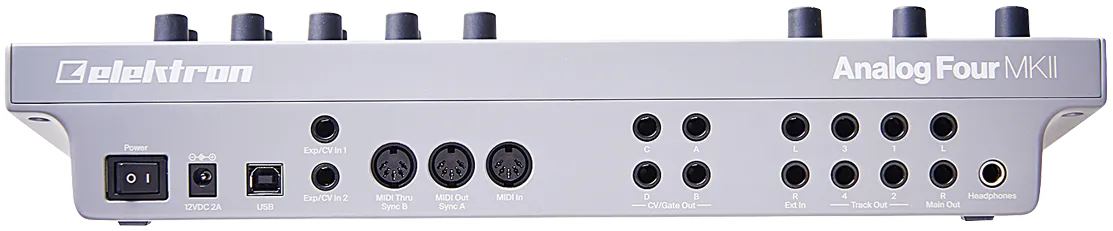

Connectivity

• Main outputs (L/R)
• Individual stereo outputs for each voice
• Headphone output
• 4 × CV/Gate outputs
• 2 × external audio inputs
• 2 × expression/CV entries
• MIDI In/Out/Thru
• USB 2.0 (Overbridge)

DAW integration (Overbridge)

• VST/AU Plugin
• Multi-track audio streaming via USB
• Perfect synchronization with DAW
• Usable as a sound card (2 inputs / 2 outputs)

Memory & storage

• 128 projects
• 4096 sounds (+Drive library)
• 128 kits / project
• 128 patterns / project
• 16 pieces / project

‍
