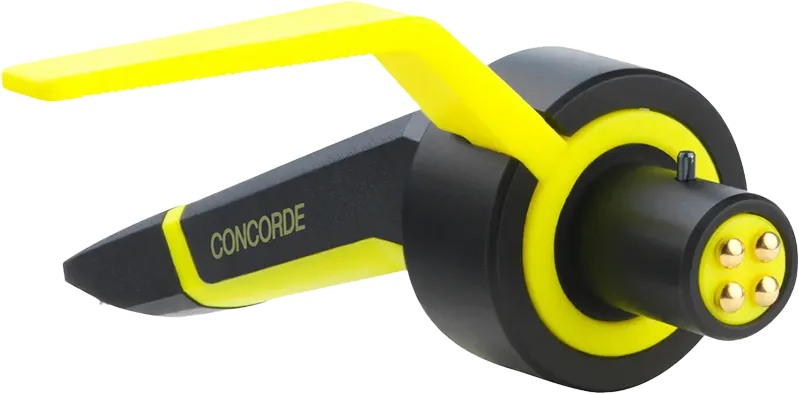

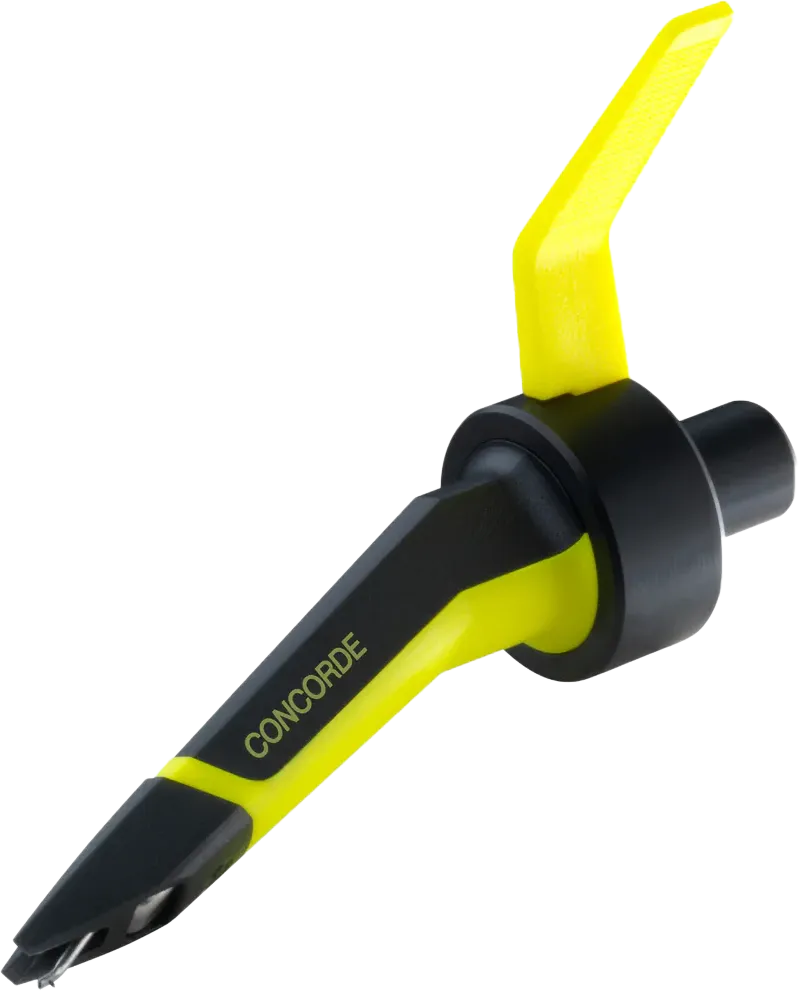

The Concorde CLUB offers exceptional sound quality and high output voltage for a powerful and energetic audio experience. With its impressive specifications and remarkable sound profile, the CLUB stands out as a top choice for club DJs, whether in the studio, on air or in clubbing venues.
Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5 cm/s: 8 mV
Channel separation at 1 kHz: 25 dB
Tracking capacity at 315 Hz: 100 μm
Compliance, dynamic, lateral: 14 μm/m N
Cantilever material: Aluminum
Stylus type: Special elliptical diamond
Stylus tip radius: r/R 13/25 μm
Downforce range: 2 - 4 g
Recommended support force: 3 g
Internal impedance, DC resistance: 1000 Ohm
Recommended impedance load: 47 kOhm
Recommended load capacity: 200-600 pF
Cell weight: 18.5 g
Internal inductance: 650 mH
Replacement Stylus: Stylus CC MKII Club
